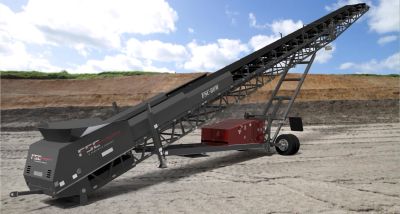

65 ft. Wheeled Conveyor
65 ft. Wheeled stacking conveyors
Belt Width X Length: 36 in. X 65 ft. (0.9 X 19.8 m)
Discharge height at 23° incline (Full Extension): 26.1 ft. (9 m)
Stockpile height of dry stone (Angle of repose = 35°): 23 ft. (7 m)
Stockpile volume (yd³) at 23° conveyor incline: 842.3 (yd³)
Belt Specification: 3-ply Vulcanized 3/16” x 1/16”
Belt Drive (cm³): 630 (cm³)
Belt trough angle: 35°
Download technical brochure here.

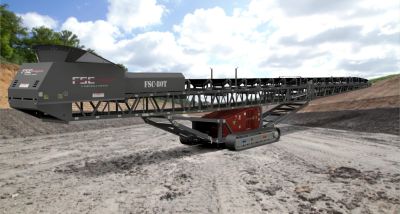

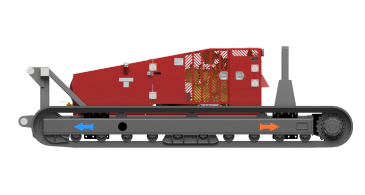

80 ft. Tracked Conveyor
80 ft. tracked conveyor
Belt Width X Length: 36 in. X 80 ft. (0.9 X 24.4 m)
Discharge height at 23° incline (Full Extension): 35.2 ft. (10.7 m)
Stockpile height of dry stone (Angle of repose = 35°): 30 ft. (9.1 m)
Stockpile volume (yd³) at 23° conveyor incline: 2,135.87 (yd³)
Belt Specification: 3-ply Vulcanized 3/16” x 1/16”
Belt Drive (cm³): 630 (cm³)
Belt trough angle: 35°
Download technical brochure here.

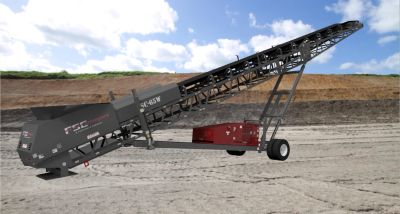

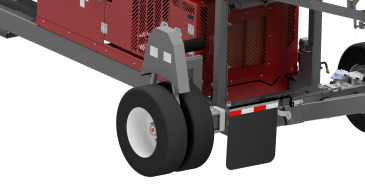

80 ft. Wheeled Conveyor
80 ft. Wheeled stacking conveyors
Belt Width X Length: 36 in. X 80 ft. (0.9 X 24.4 m)
Discharge height at 23° incline (Full Extension): 30.1 ft. (9.2 m)
Stockpile height of dry stone (Angle of repose = 35°): 28.5 ft. (9.1 m)
Stockpile volume (yd³) at 23° conveyor incline: 1,831 (yd³)
Belt Specification: 3-ply Vulcanized 3/16” x 1/16”
Belt Drive (cm³): 630 (cm³)
Belt trough angle: 35°
Download technical brochure here.
100 ft. Wheeled Conveyor
100 ft. Wheeled stacking conveyors
Belt Width X Length: 36 in. X 100 ft. (0.9 X 30.48 m)
Discharge height at 23° incline (Full Extension): 43.1 ft. (13.1 m)
Stockpile height of dry stone (Angle of repose = 35°): 35 ft. (10.7 m)
Stockpile volume (yd³) at 23° conveyor incline: 3,392 (yd³)
Belt Specification: 3-ply Vulcanized 3/16” x 1/16”
Belt Drive (cm³): 800 (cm³)
Belt trough angle: 35°
Download technical brochure here.
